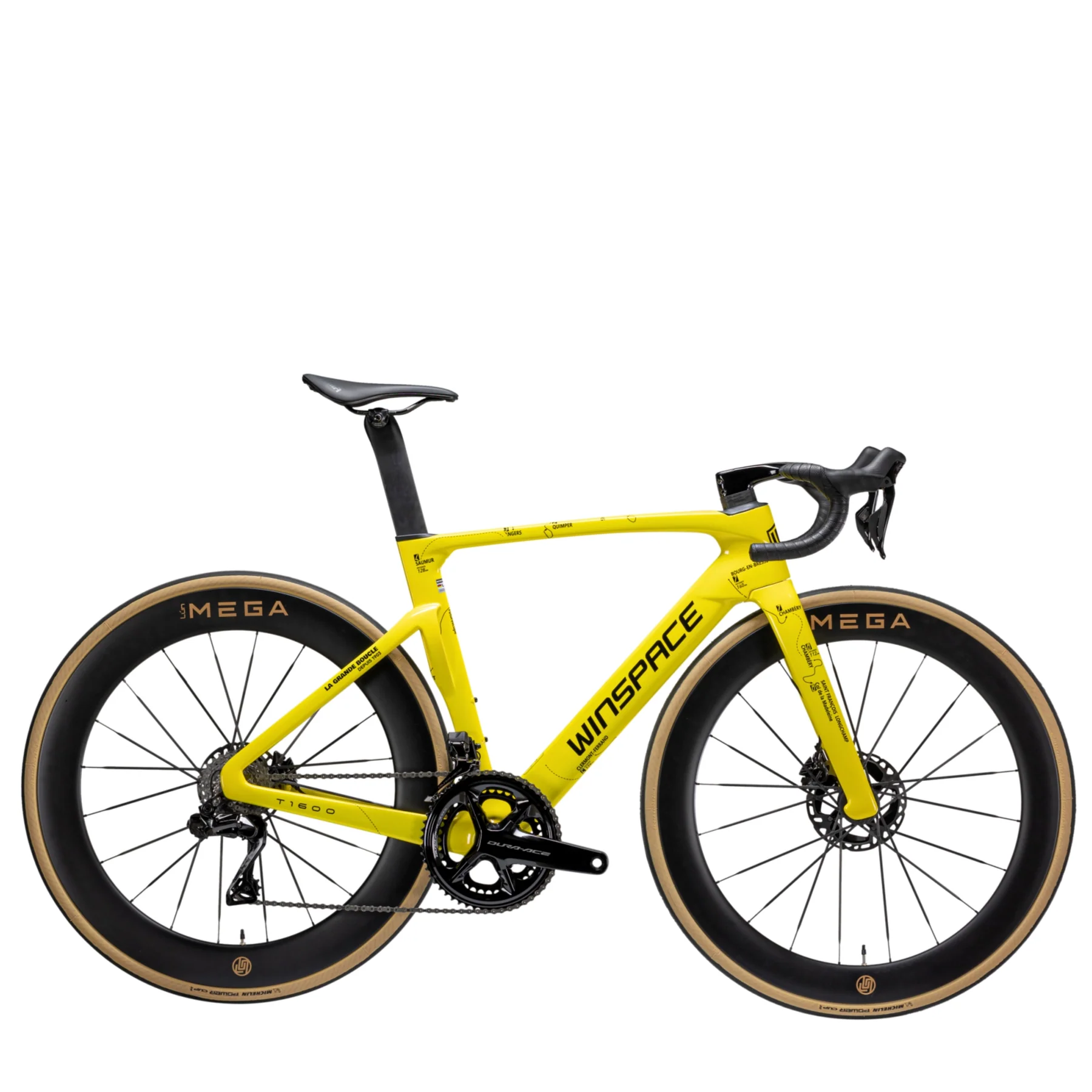

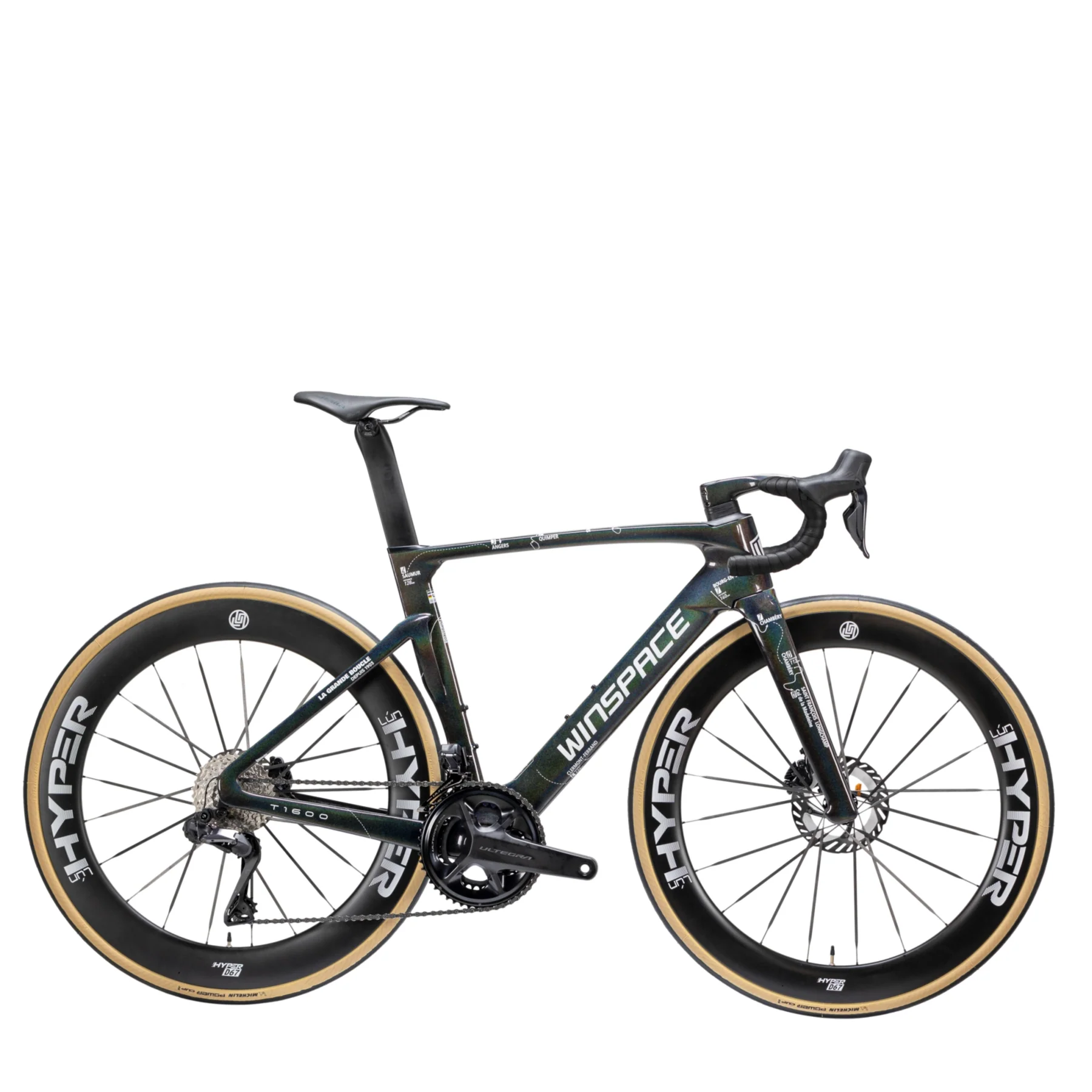

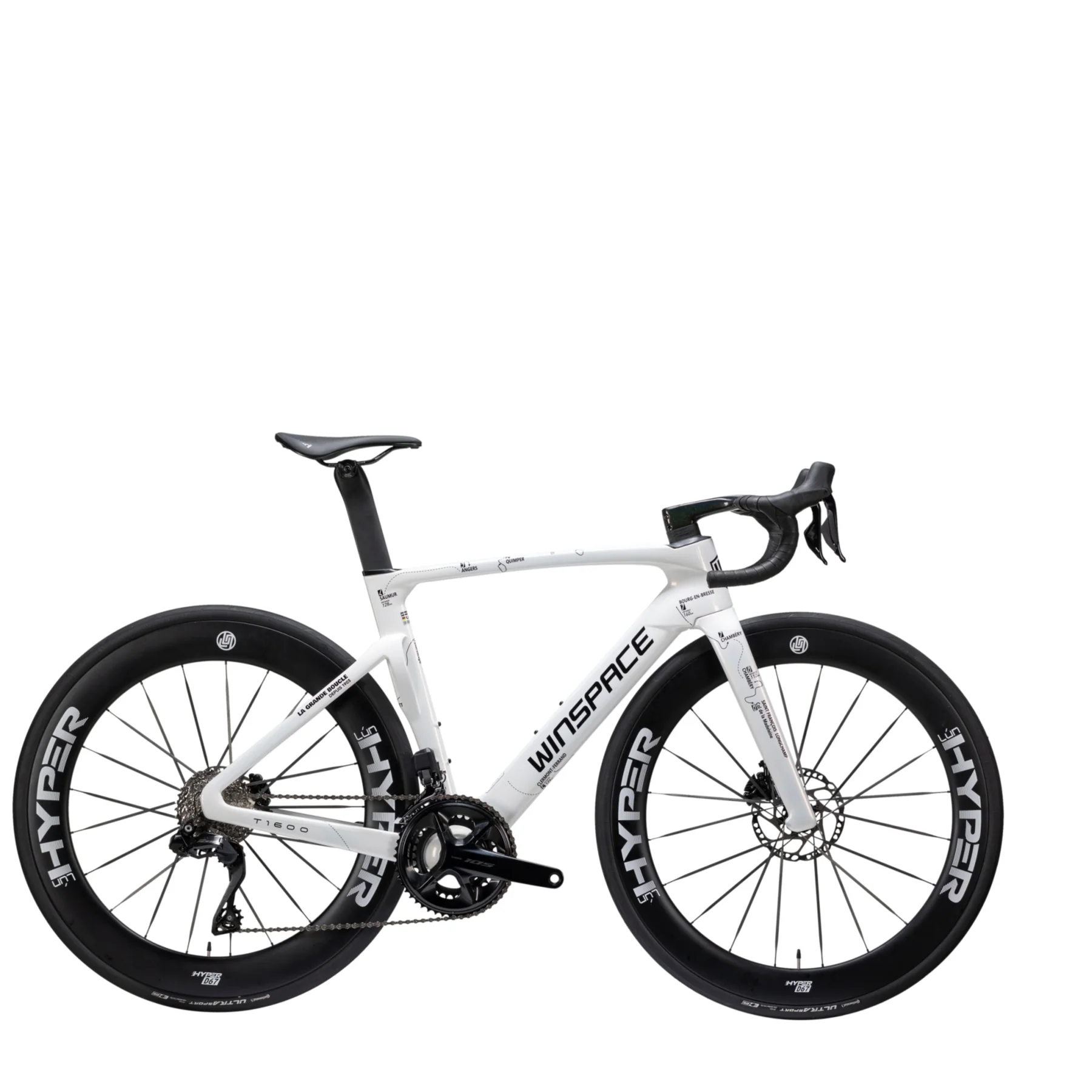

T1600 Ultegra Di2

The pinnacle of aerospace-inspired speed. The T1600 is engineered for riders who demand uncompromising aerodynamics, stiffness, and control. Its advanced carbon layup maximizes power transfer while ensuring comfort, delivering speed that lasts through climbs, sprints, and crosswinds. Built not just to be fast—but to stay fast.
  • Ultra-Lightweight: M size raw frame ~900 g (Toray T1000 + T1100 + Kevlar)
  • Pro-Level Electronic Shifting: Shimano Ultegra Di2 R8170 2×12
  • Premium Wheel System: HYPER3 D45 carbon wheels
  • Fully Internal Cable Routing for a clean, aero profile
  • Tires: Michelin POWER CUP 700×28C Tan Sidewall (Clincher)

Build Specs

Key Highlights

  • D-Type Intake: D-shaped airflow path enhances efficiency and stability.
  • Jet-Inspired Head Tube: Kevlar-reinforced, fighter jet nosecone design for maximum aero performance.
  • Razor-Thin Profile: Lightning-fast silhouette with optimized ride feel.
  • Wind Tunnel Proven: 5.5 W savings at 48 km/h over 100 km.
  • Pro-Level Electronic Shifting: Shimano Ultegra Di2 R8170 2×12.
  • Premium Wheel System: HYPER23 SE D45 carbon wheelset.
  • Michelin POWER CUP Tires, 700×28C, tan sidewall.

Complete Bike Weight

  • ~7.6 kg (Size M, without pedals)

Frame & Fork

  • Frame: Imported Toray T1000 + T1100 carbon + Kevlar
  • Fork: Full carbon
  • Headset: 1-1/2″ upper & lower
  • Sizes: XS / S / M / L / XL

Groupset

  • Shifters: Shimano Ultegra ST-R8170 Di2 hydraulic
  • Front Derailleur: Shimano Ultegra FD-R8150 Di2
  • Rear Derailleur: Shimano Ultegra RD-R8150 Di2
  • Crankset: Shimano Ultegra FC-R8100, 50/34T
  • Cassette: Shimano Ultegra CS-R8101-12, 11–34T
  • Chain: Shimano CN-M8100
  • Brakes: Shimano hydraulic disc, 160 mm front / 140 mm rear rotors

Wheel & Tire System

  • Wheelset: HYPER3 D45 carbon
  • Tires: Michelin POWER CUP, 700×28C (tan sidewall)

Cockpit & Contact Points

  • Integrated Handlebar: HYPER one-piece carbon (380/400/420 mm)
  • Bar Tape: Selle Italia SG-Tape
  • Saddle: Selle Italia SLR BOOST Superflow
  • Seatpost: AERO SEATPOST

Bottom Bracket

  • Shell: Token T47 threaded BB

What’s in the Box

Your new bike arrives 90% assembled. In addition to the pre-assembled frameset and components, the accessory box includes the following items for final installation:

  • Saddle
  • Seatpost
  • Seatpost Wedge
  • Carbon Rail Saddle Clamp
  • Computer Mount Kit
  • Spare Derailleur Hanger (one is pre-installed)
  • Seatpost Dust Cover
  • Water Bottle Cage Bolts (x4)
  • Assembly Tool Kit
  • Pedals

Geometry Chart
