G5 Pro DI2

The WINSPACE G5 redefines what a gravel race bike can be. Building on the legendary success of our G3 platform, we have created a purebred aerodynamic racing machine that retains the uncompromising all-terrain capability gravel riders demand. Every tube, every junction, every detail has been optimized and proven on the world's toughest gravel courses
Gryper2 features a laser-engraved label; Grapid 2 is available in white label configuration.
**The bottom bracket requirement for the G5 is T47 68mm External**
Color
Nautical Blue | Dune Fade | Alpine White | Raw / Black
Size
XS | S | M | L | XL | XXL
HANDLEBAR WIDTH
360mm | 380mm | 400mm | 420mm
Crank Length: 165mm

More Details

Build Specs

Frame G5 Material: Toray T1100+T800 Carbon Fiber Blend
Fork: Full Carbon Fiber
Headset: 1-1/2″ (FSA ACR system)
Bottom Bracket: T47-68mm

Shifters: Shimano GRX825
Rear Derailleur: SHIMANO GRX 825 RD-RX827
Crankset: SHIMANO GRX 825, 42T
Cassette: SHIMANO GRX 825, 10-51T
Chain: SHIMANO GRX 825, 12-speed
Brakes: Hydraulic Disc Brakes

Handlebar: ADVANTURE Integrated Handlebar
Saddle: SELLE ITALIA
Seatpost: AERO Carbon Seatpost

Wheelset: Lun GRAPID2 700C D45 Steel Spokes
Tires: Michelin Power Gravel 700x40C
Images are for reference only. Wheel and handlebar specs follow the build table. Tire color (black or tan) is shipped based on availability.

Total Weight: ~8.7kg (size M with pedals)

What’s in the Box

Your new bike arrives 90% assembled. In addition to the pre-assembled frameset and components, the accessory box includes the following items for final installation:

Saddle
Seatpost
Seatpost Wedge
Steel Rail Saddle Clamp
Computer Mount Kit
Spare Derailleur Hanger (one is pre-installed)
Seatpost Dust Cover
Includes 1 UDH derailleur hanger (pre-installed). No spare hanger included.
Pedal

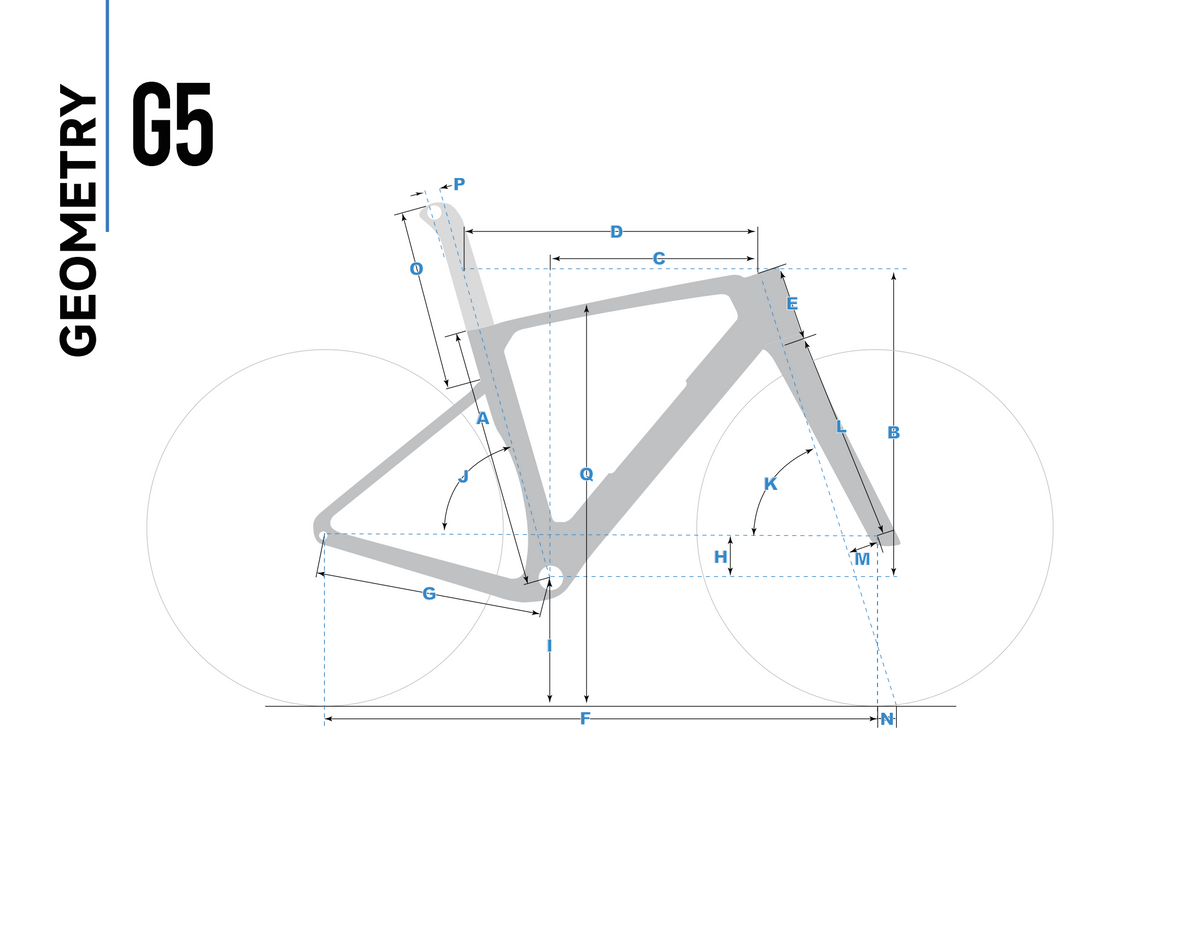

Geometry Chart
